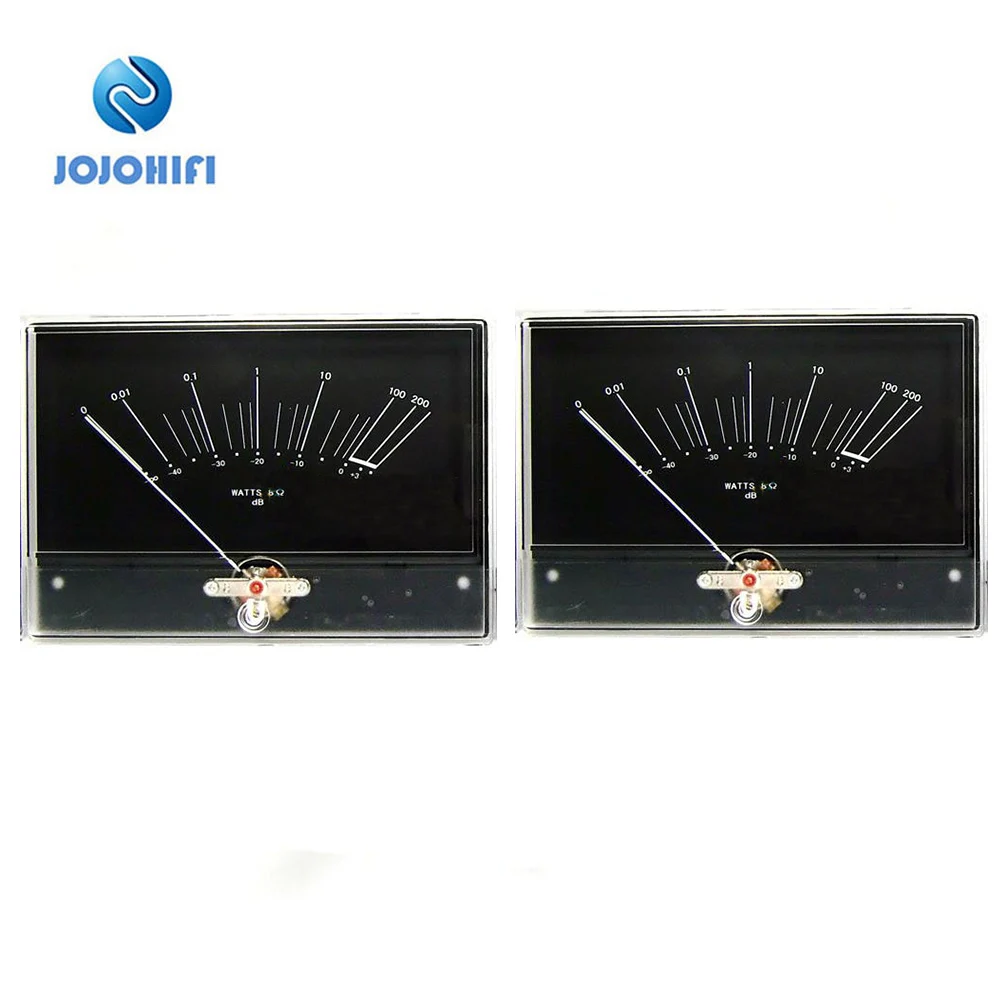

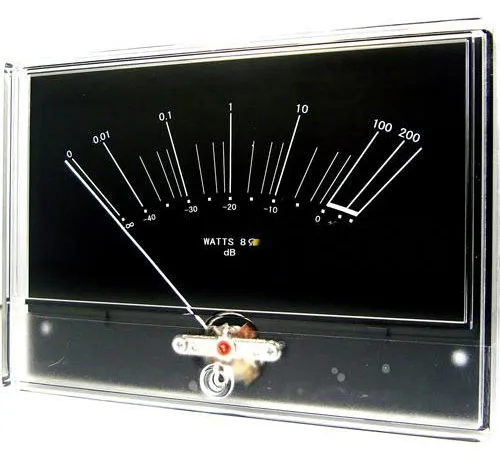

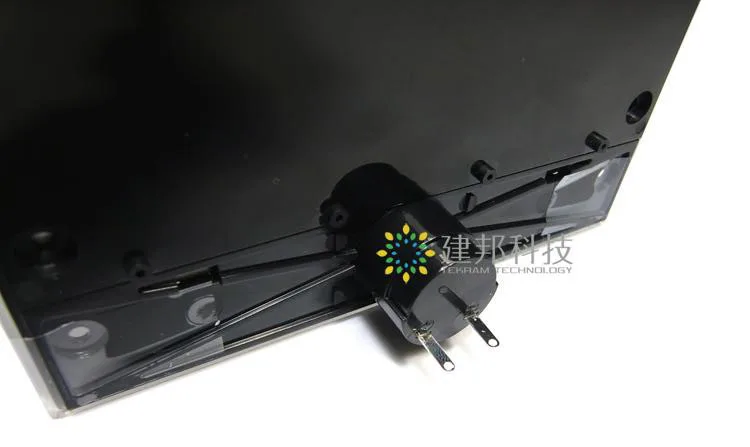

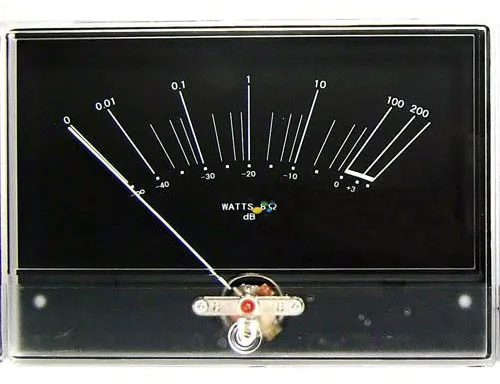

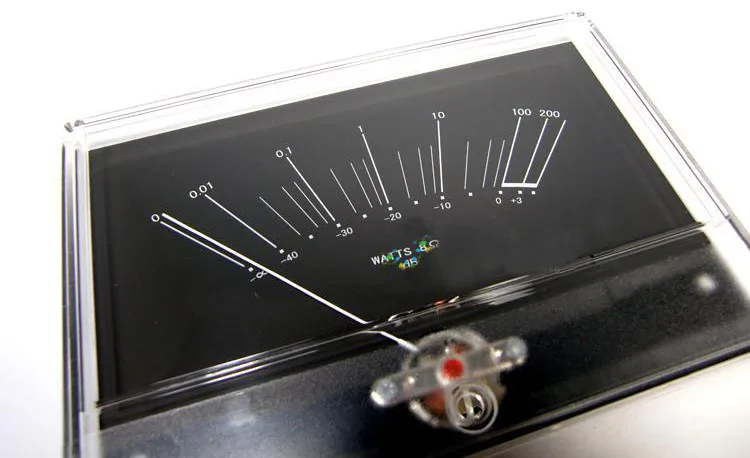

2pcs(One Pair） M-5000R ONKYO Onkyo Amplifier VU Meter Head DB Level Meter HI-FI HIFI Fever Audio Amplifier Original
Cheap Amplifier, Buy Quality Consumer Electronics Directly from China Suppliers:2pcs(One Pair） M 5000R ONKYO Onkyo Amplifier VU Meter Head DB Level Meter HI FI HIFI Fever Audio Amplifier OriginalEnjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
Price: US $77.16 US $108.68 (Discount 29%)
Rating: 5.0 / 5.0 (100.0%) from 3 Reviews
Sold : 6
Stock : 4994
Wishlist : 22
Specification
Brand Name : Olive Leaf
Maximum Power Per Channel : NO POWER
Model Number : 2pc M-5000R ONKYO VU Meter
Description
2pcs M-5000R ONKYO Onkyo Amplifier VU Meter Head DB Level Meter HI-FI HIFI Fever Audio Amplifier Original
Parameters：
● Pointer material: Nickel silver strips● Pointer color: orange● Pointer swing direction: from left to right● Pointer length: 70 ± 1 mm from the center axis to the needle end● Pointer width: 0.45 ± 0.05 mm● Electric meter use direction: vertical
Performance:
● Standard test conditions: temperature 20 ℃, humidity 70%●Current sensitivity: the pointer is in the zero scale to the maximum scale (full scale position) Sensitivity 1000 uA ± 10%● Internal impedance: 100Ω ± 10%● Insulation resistance: 500V DC plus 50M ohm or more for the outer box of the meter and the electrical circuit. The insulation resistance of the meter housing and the electrical circuit is tested by 500V DC voltage.● Zero position: the meter uses the standard posture, and the front of the pointer and the center of the zero scale are the referenceThe tolerance of the pointer and zero scale overlap is ± 1mm● Balance: The allowable error range of the meter when the standard position is tilted 90 degrees forward and backward is ± 1mm● The pointer sticks: when the full-scale current triples the overcurrent in an instant and slowly reduces to the current sensitivity reading of 1/2, the pointer will return to the scale of 1/3 of the scale● Friction: When the current is added to the meter and slowly increased or decreased to a certain value, the error range of the indicated point is ± 1mm● Braking: instantly add 2/3 of the current value of the scale plate, within one second from the start to the position indicated by the pointer
Package include:
2pcs Onkyo M-5000R VU Meter
