Full Color RGB Music Audio Spectrum Display Screen KTV Stage LED Rhythm Light 64 Mode Level Indicator VU Meter DIY
Cheap Speaker Accessories, Buy Quality Consumer Electronics Directly from China Suppliers:Full Color RGB Music Audio Spectrum Display Screen KTV Stage LED Rhythm Light 64 Mode Level Indicator VU Meter DIYEnjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
Price: US $42.13 US $48.99 (Discount 14%)
Rating: 4.6 / 5.0 (91.4%) from 7 Reviews
Sold : 12
Stock : 7188
Wishlist : 89
Color : Bundle 1, Bundle 2, Bundle 3, Bundle 4, Bundle 5, Bundle 6, Bundle 7, Bundle 8, Bundle 9
Specification
Brand Name : Olive Leaf
Item Type : Speaker Active Components
Model Number : LED Music Spectrum
Package : No
Material : Other
Description
Special Note
This spectrum no Case, DIY products!
Power description

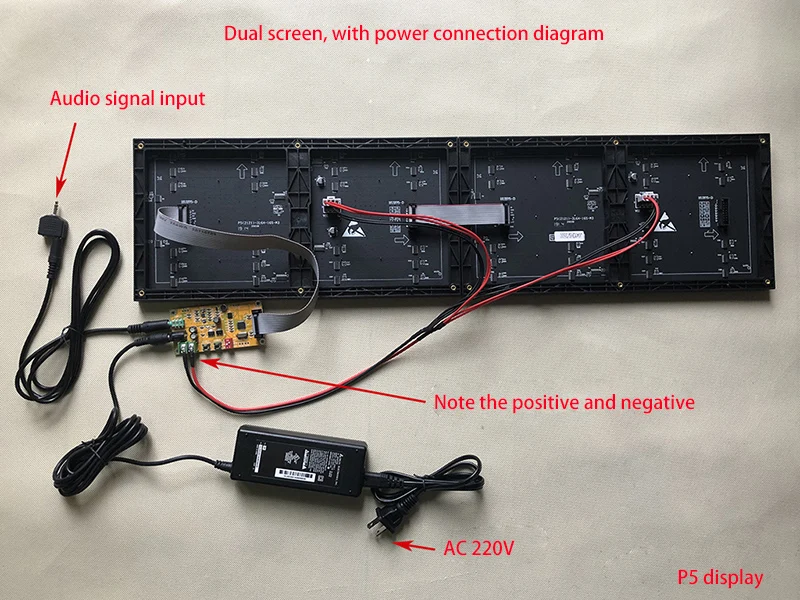

If you are buying a single screen, you can use the computer USB power supply; dual screen is best to use a separate power supply, if you do not have a 5V 6A (or 6A or more) power supply, please order with power supply option.
Features
1. Using 32-bit high-speed ARM processor, the spectrum display is precise, accurate and beautiful, and can be used for frequency sweep test;2. Two types of signal acquisition methods, electret microphone MIC and line input, adopt Jingsong core technology, the microphone collection effect and line input effect are very good;3. With professional-grade AGC (automatic gain control), the audio has a wide adaptation range, which not only guarantees the accuracy and effect of the frequency spectrum, but also does not appear that the volume is too small to be displayed, and the volume is displayed at the full screen;4. Up to 64 color mode combinations, set with power-down memory;5. Added 10-level brightness adjustment, no need to worry about dazzling, you can adjust to a very soft brightness, set with power-off memory;
Instructions for use

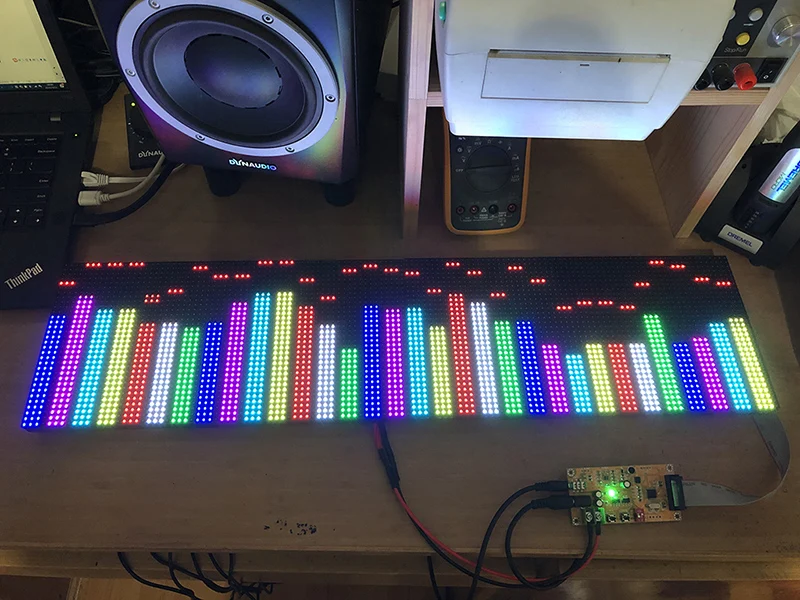

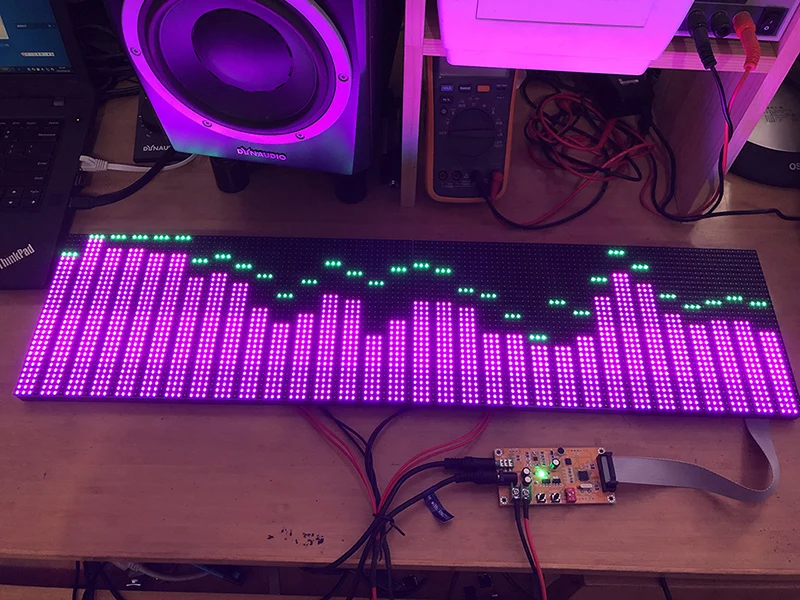

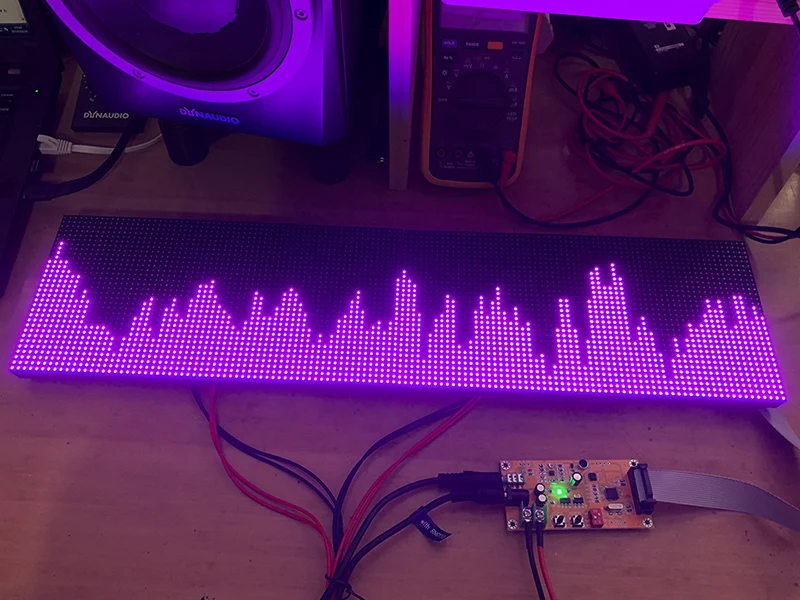

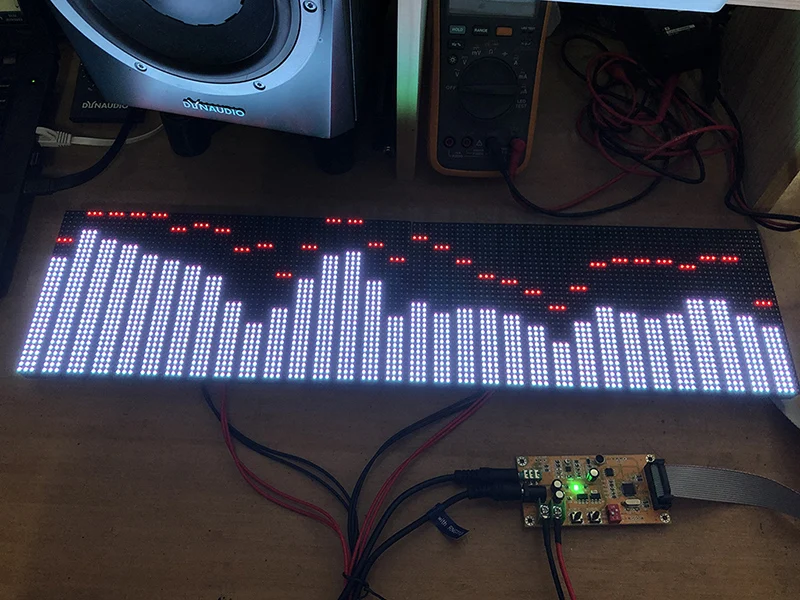

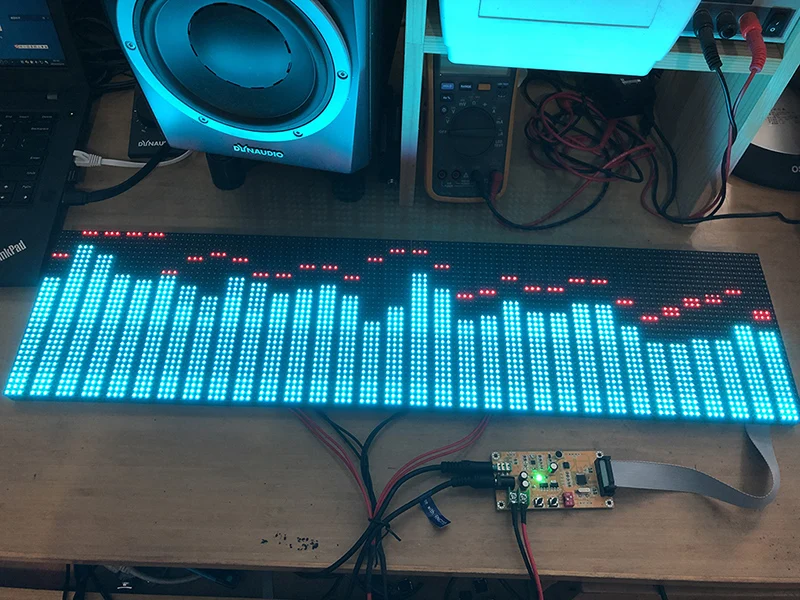

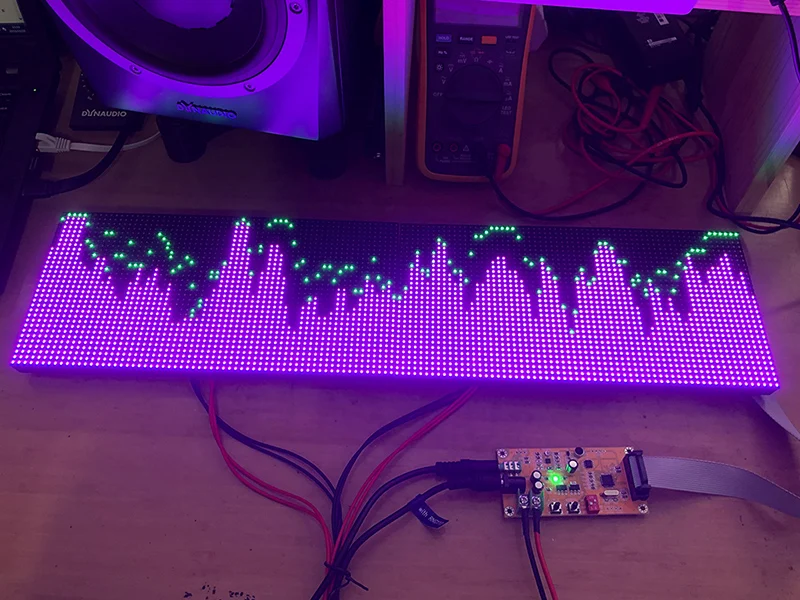

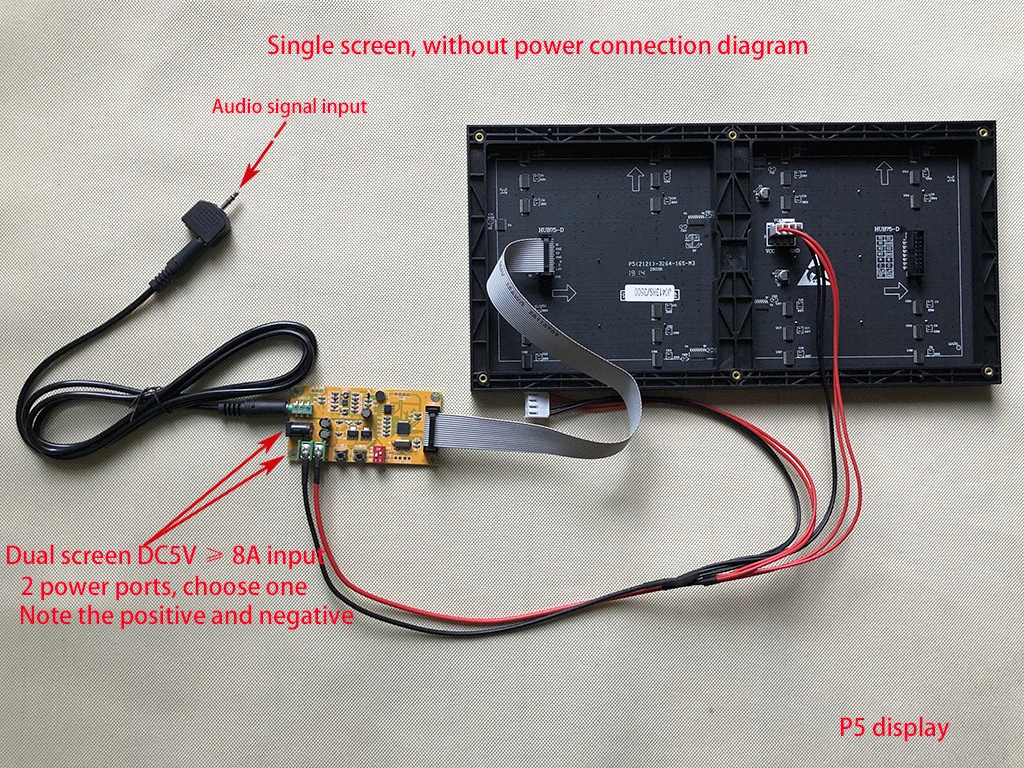

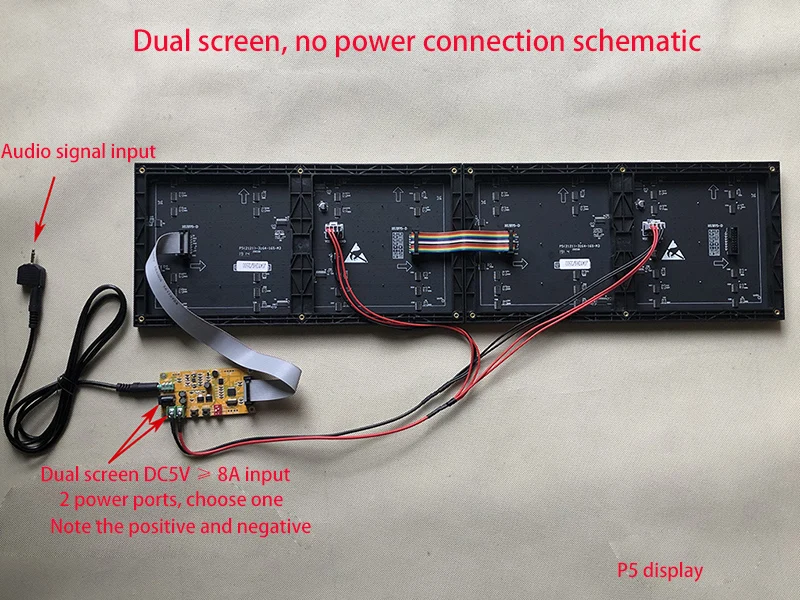

The control card can control 75 interfaces 32 * 64 points P4 P5 P6 full-color dot matrix module, the card supports up to 2 screen cascade, can also work on a single screen;The connection sequence of the display screen is as shown in the figure below, pay attention to the direction of the display screen arrow, and connect the control card to the display cable to the left side of the input arrow;The card can display 64 color mode combinations, the mode is adjusted by K1, the color is adjusted by K2, and the settings are all powered down memory;The standard configuration of this spectrum is a 3.5mm headphone jack input. If your audio output is an RCA Lotus interface, please purchase a Lotus to 3.5 conversion cable;In the case where the signal input port is floating, it is normal for the bottom of the spectrum to jump. Inserting the 3.5mm headphone plug into the headphone port will restore the bottom line;The R1 and R2 potentiometers of the spectrum control card have been set to the best position in the factory. The user does not need to adjust it. If it is adjusted accidentally, please return to the middle position.Product size: dual P4 screen length 51.2 * height 12.8 cmDual P5 screen length 64 * height 16 cmSingle P4 screen length 25.6 * height 12.8 cmSingle P5 screen length 32 * height 16 cmControl card button instructions: (set with power-down memory)K1 button (short press) ---- mode switchK2 button (short press) ---- color switchK1 button (press and hold) + K2 button (short press) Brightness plusK2 button (press and hold) + K1 button (short press) brightness decreaseInstructions for use of the red DIP switch:S1 is the voice control switch. The ON position is to turn on the voice control, and the OFF position is to turn off the voice control; S2 is the single and dual screen settings, and the ON position is the dual screen.
Question 1: There is no sound and the frequency spectrum is beating

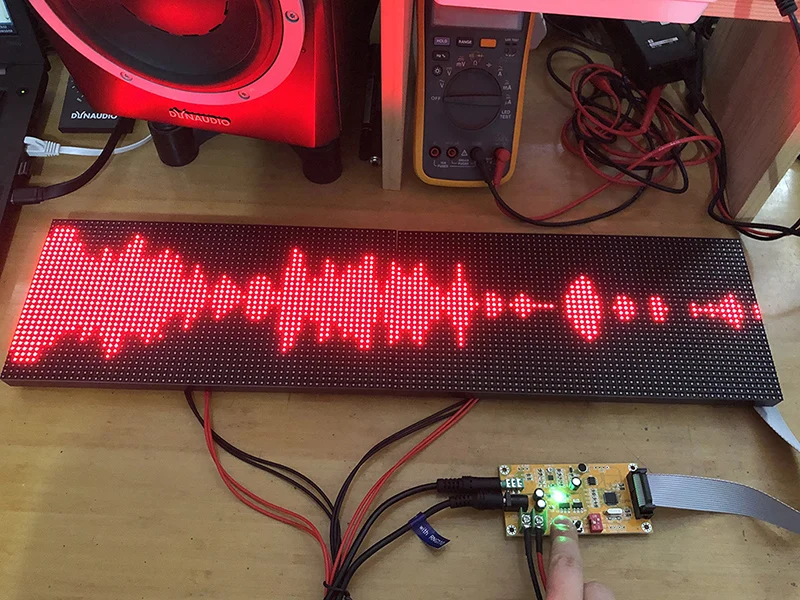

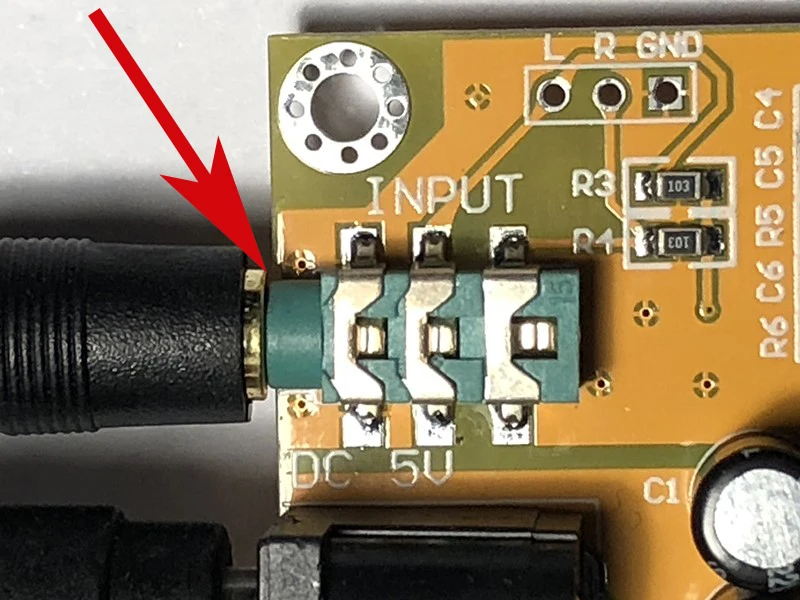

Solution:1. The headphone jack of the control card is inserted into one end of the audio cable, and the other end is not connected to the headphone jack. At this time, the spectrum will jump. You can connect both ends to the headphone jack, or you can replace it for better shielding. line;2. Check that both ends of the 3.5 audio cable are plugged into the headphone jack, and they are inserted to the end. Rotate to rule out bad contact; (Many new customers have encountered that the audio cable is not inserted to the end, and there is a distance of 1-2 mm. The picture is inserted in the end)3. If you turn on voice control, there will be tiny sounds around, the spectrum will be detected, and the automatic gain of the spectrum will be enlarged and displayed. This is a normal phenomenon;4. It is normal for the frequency spectrum to jump when the finger touches the microphone and surrounding lines of the control card;5. If your audio equipment has noise floor, although there is no song, spectrum automatic gain will amplify and display the noise floor, how to judge whether the spectrum is normal: turn off the voice control switch, and unplug the audio cable of the control card, wait a few seconds, if The frequency spectrum does not jump to prove that the frequency spectrum is normal, you can also change other audio equipment to test.
Problem two: dual-screen display, one screen displays normally, there is a line in the middle of the other screen
Solution:This is because the control card is set to the single-screen mode, and the empty-color dial switch 2 can be pushed to the dual-screen position.
