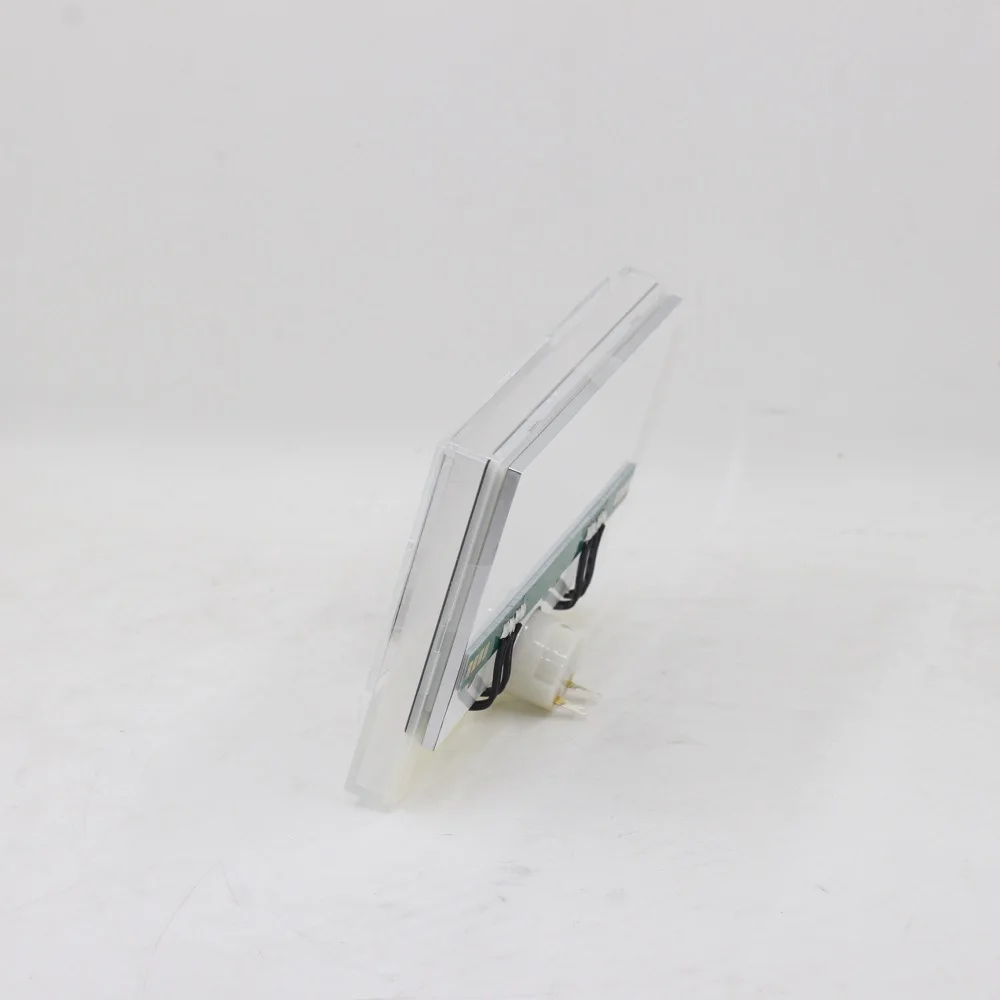

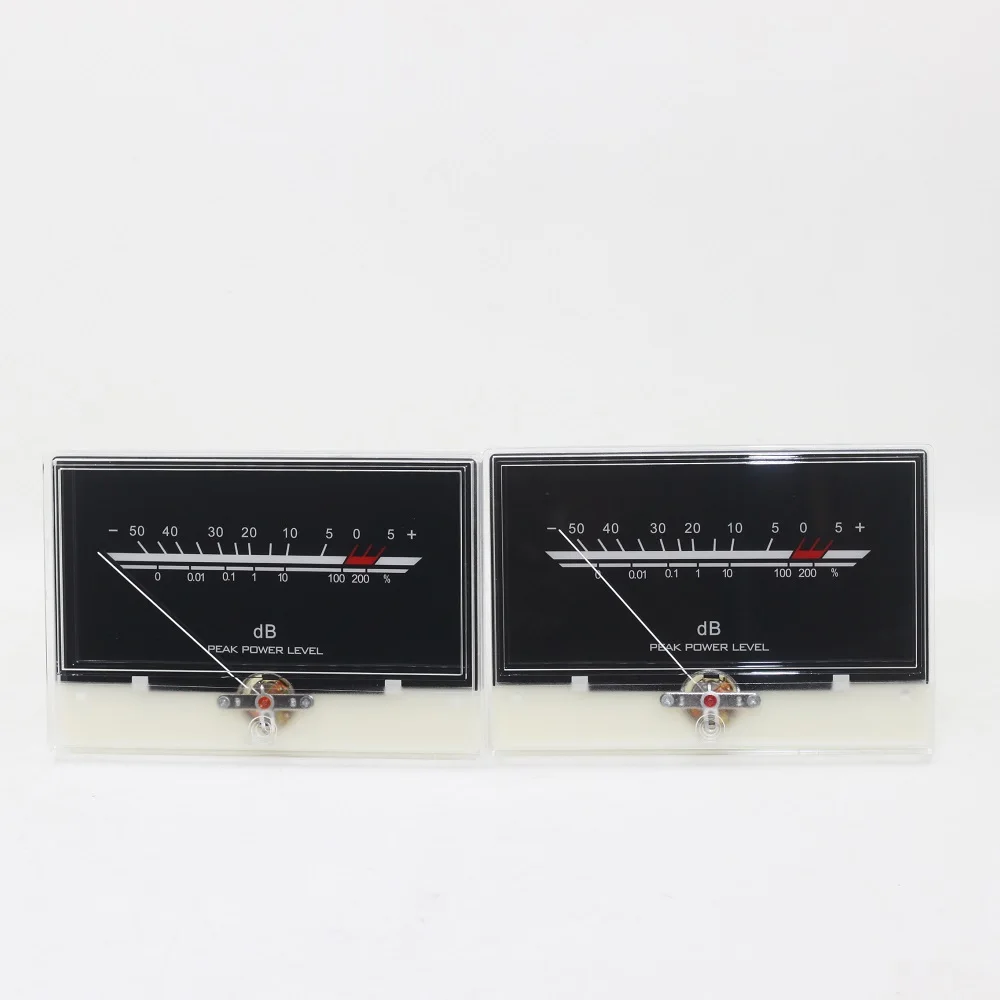

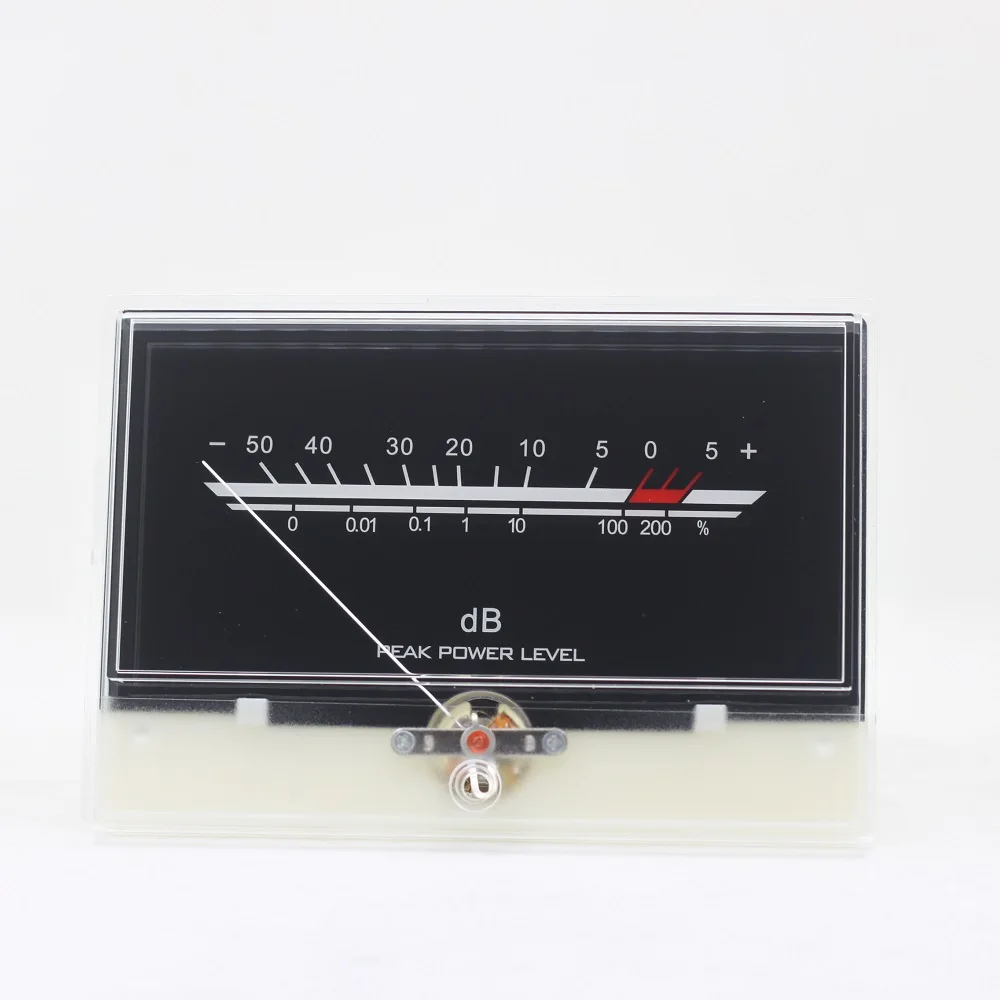

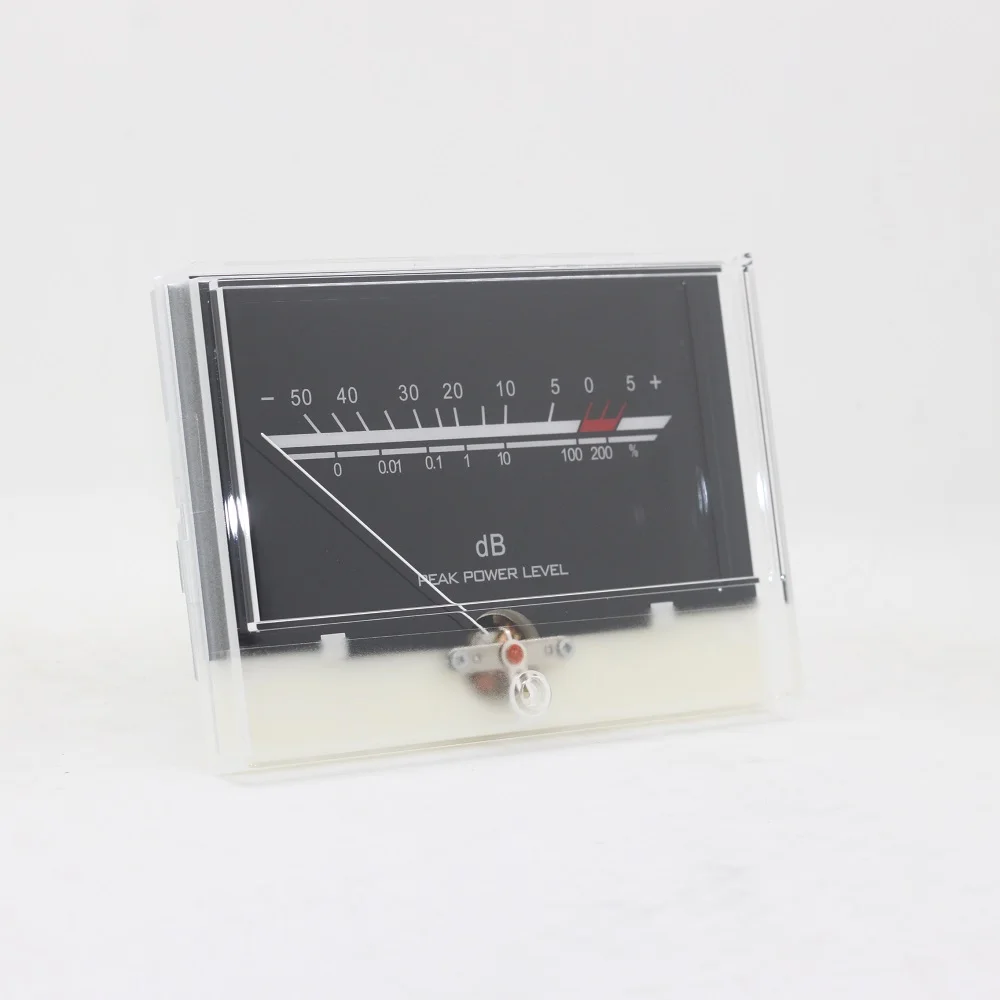

VU Meter Post Power Level Meter Audio DB Header White Backlight P-134 Rear Amplifier
Cheap Amplifier, Buy Quality Consumer Electronics Directly from China Suppliers:VU Meter Post Power Level Meter Audio DB Header White Backlight P 134 Rear AmplifierEnjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
Price: US $29.76 US $32.00 (Discount 7%)
Rating: 5.0 / 5.0 (100.0%) from 3 Reviews
Sold : 6
Stock : 80
Wishlist : 45
Ships From : China
Specification
Brand Name : FunKenya
Certification : NONE
Origin : CN(Origin)
Maximum Power Per Channel : NO POWER
Model Number : P-134
Package : Yes
Channels : 0
Color of light : White
Item : VU meters
Description
Appearance and main components

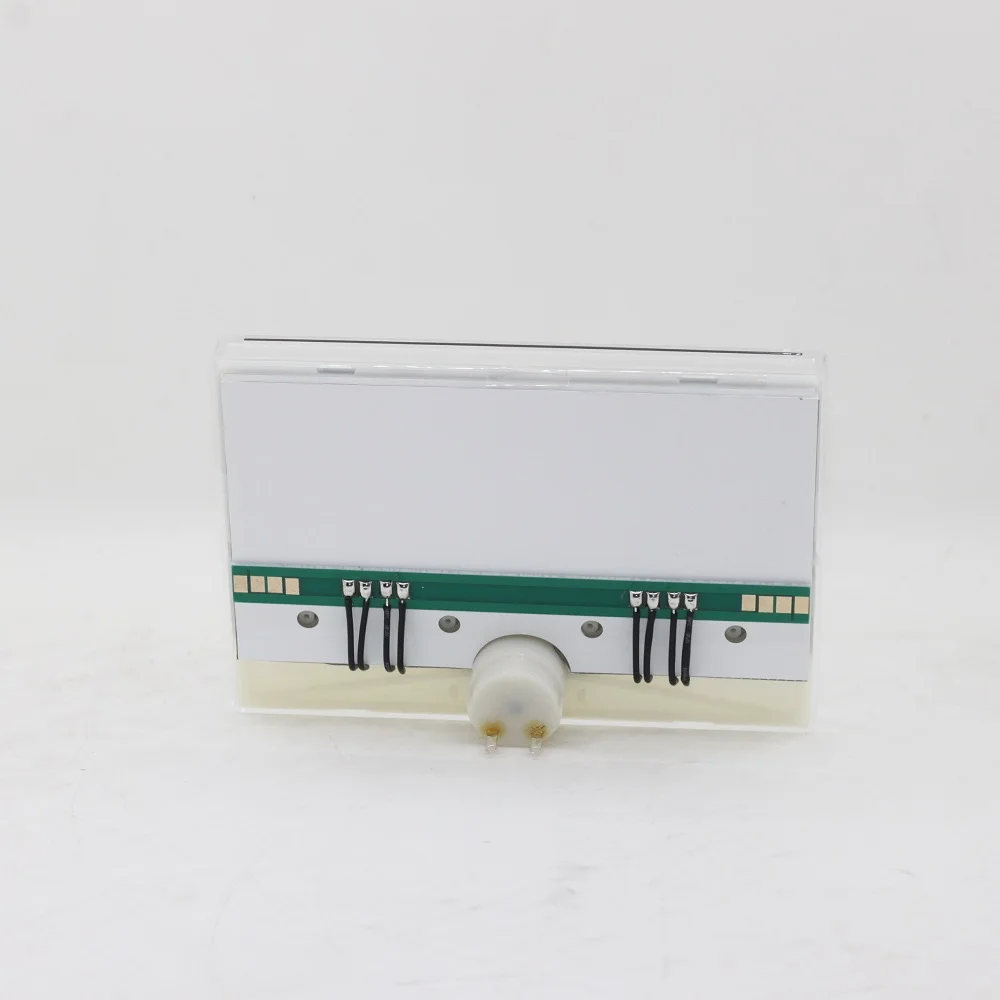

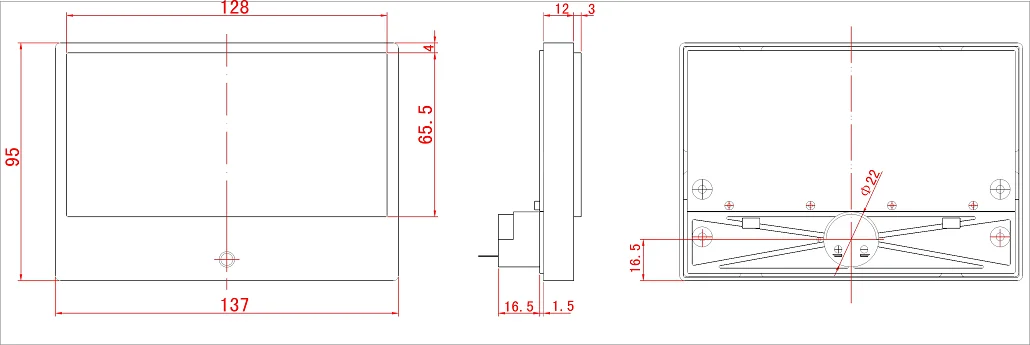

1 movable part movable coil type2 Appearance drawing3 Pointer materialPointer color whiteHand movement direction from left to rightPointer length 70 ± 1mm from needle end to shaft centerPointer width 0.45 ± 0.05 mm4 Cover material: PMMA5 Lower cover Material: ABS (transparent)6 Magnet Material: AlNiCo Sintered Magnet7 Structure Material: SPCC8 Enameled wire Material: UEW polyurethane copper wire9 Meter placement position Vertical10 Backlight white 3.0 ～ 3.2V 80mA
Electrical performance
Standard test conditions: 70% humidity. If there is no difference in test results, it can also be performed at normal temperature and humidityNO. Item Description Standard1 Current sensitivity DC current required by the pointer at the zero scale to the position shown on the scale plate2 Maximum current sensitivity DC current required by the pointer at the zero scale to the full scale position of the scale 1mA ± 10%3 Internal DC impedance 100Ω ± 10%4 Insulation resistance Test the insulation value with 500V DC voltage. The insulation resistance of the meter case and the electrical circuit is above 50MΩ.5 Friction After adding the current to the meter, it is gradually reduced to zero.The error between the position of the pointer and the center of the zero scale is ± 1mm.6 Zero position The meter is in the standard position, the center of the zero scale is the reference, and the deviation between the position of the pointer and the center of the zero scale is ± 1mm.7 Balance When the meter is tilted 90 degrees back and forth from the standard position, the deviation between the position of the pointer and the center of the zero scale is ± 1mm8 The pointer is stuck, and an overcurrent that is three times the full-scale current is instantly added.After 7 seconds, it gradually decreases to 1/2 of the full-scale current.The needle may stick to the bottom due to different ambient temperature and humidity, but the pointer should return to the specified range.9 Hand swing Add the maximum current in 5 seconds in a linear manner, and reduce it to zero linearly in 5 seconds.Stop waiting for exceptions
VU meter post power level meter audio DB header
